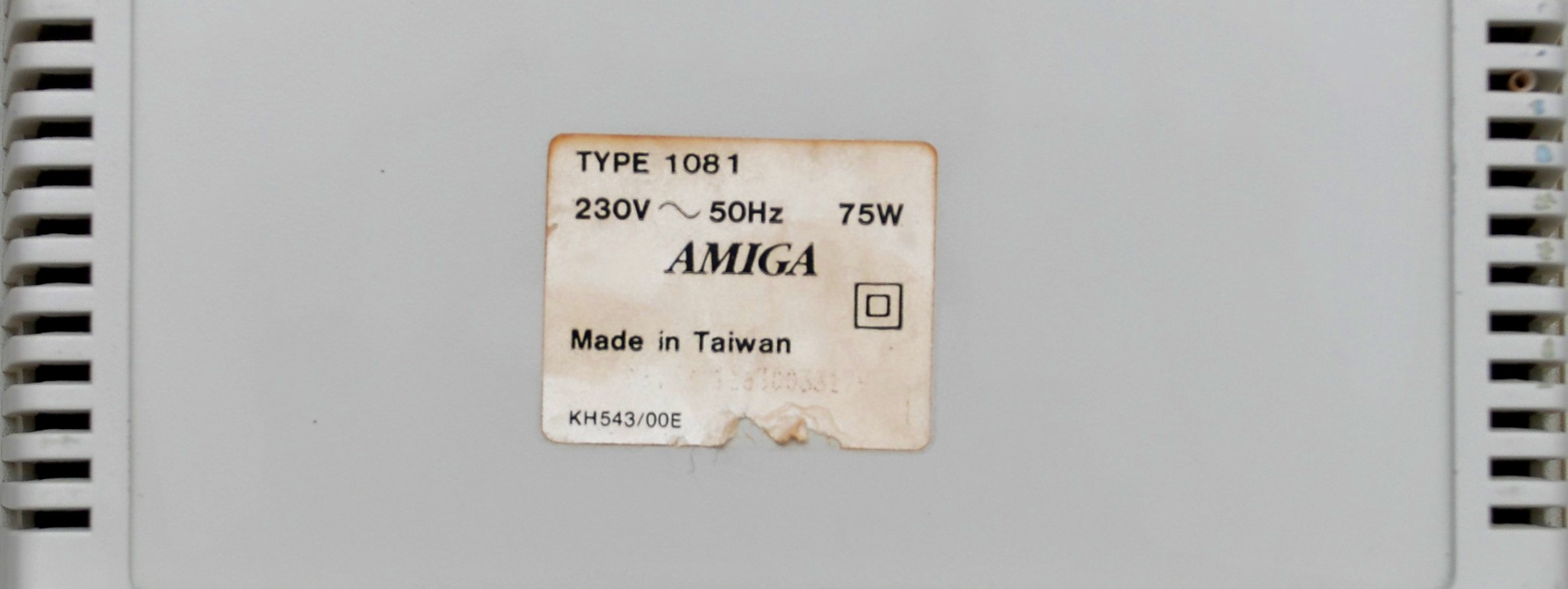

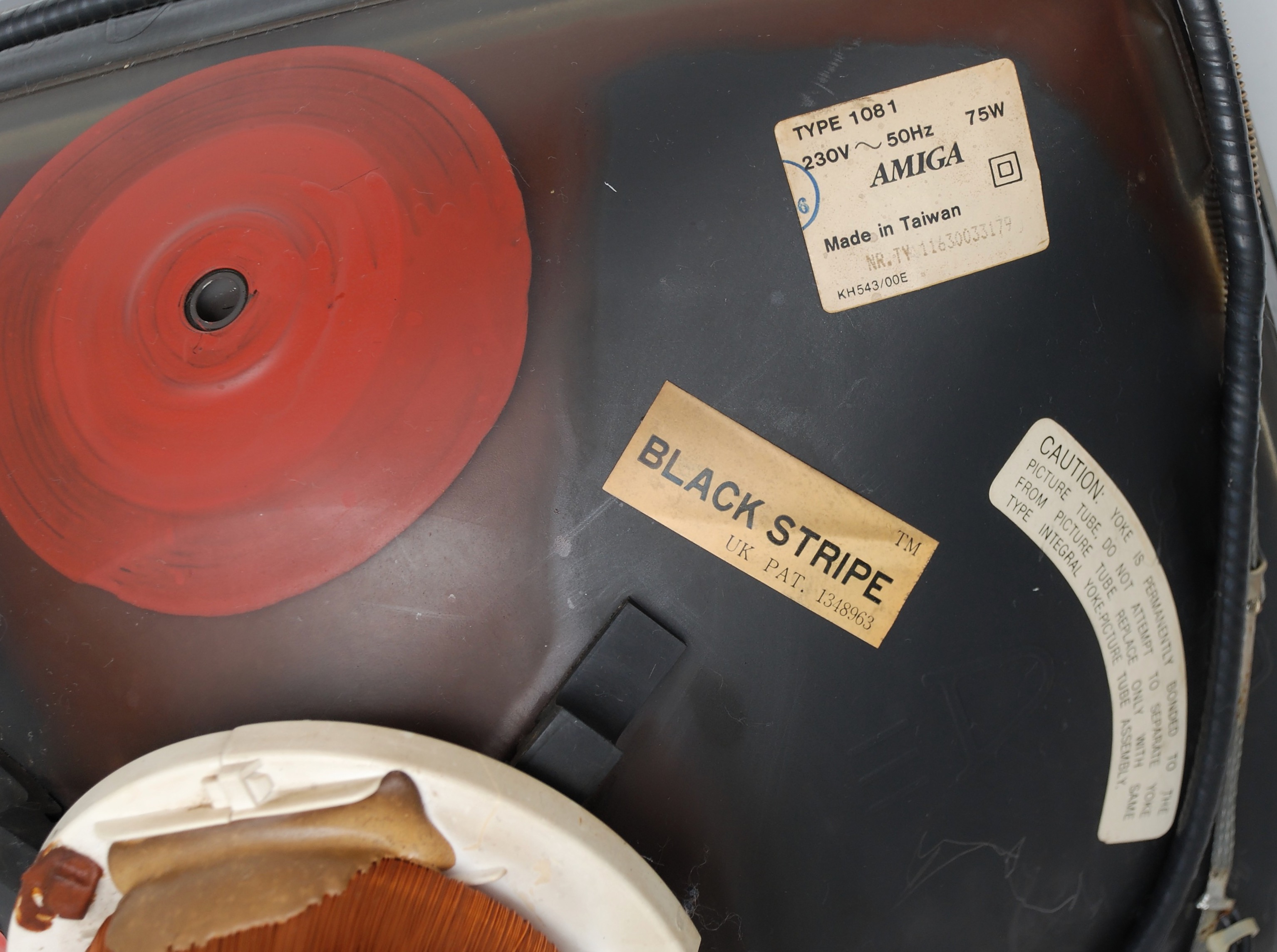

Hello, I stumbled upon your website during my search for information on recapping a 1081 monitor.
I’m almost done with the recapping, which I undertook mainly as practice for working on a 27” Sony PVM. Interestingly, the capacitors seemed fine – no signs of leakage, and the ones I checked were still meeting their specifications, indicating the recapping might not have been strictly necessary.

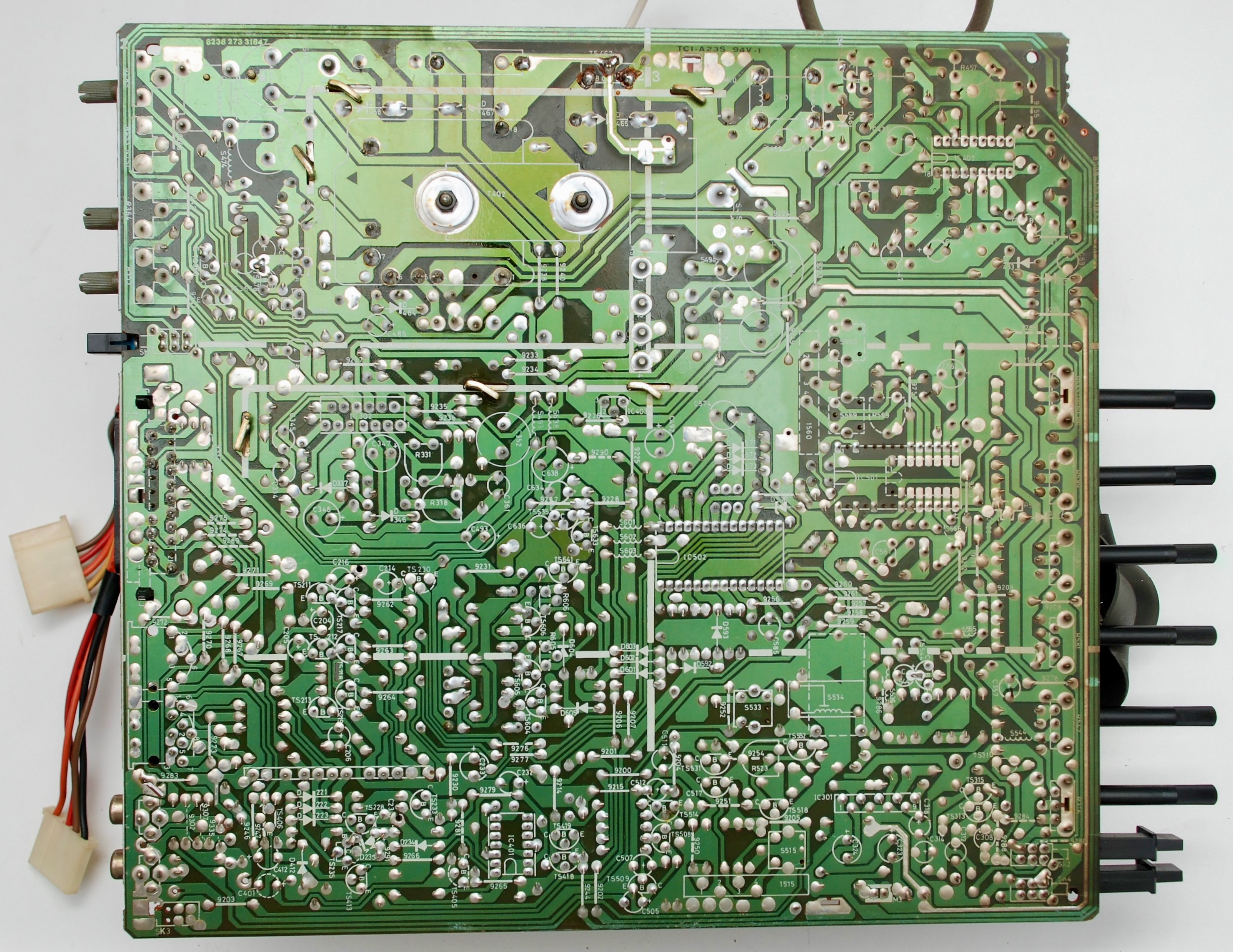

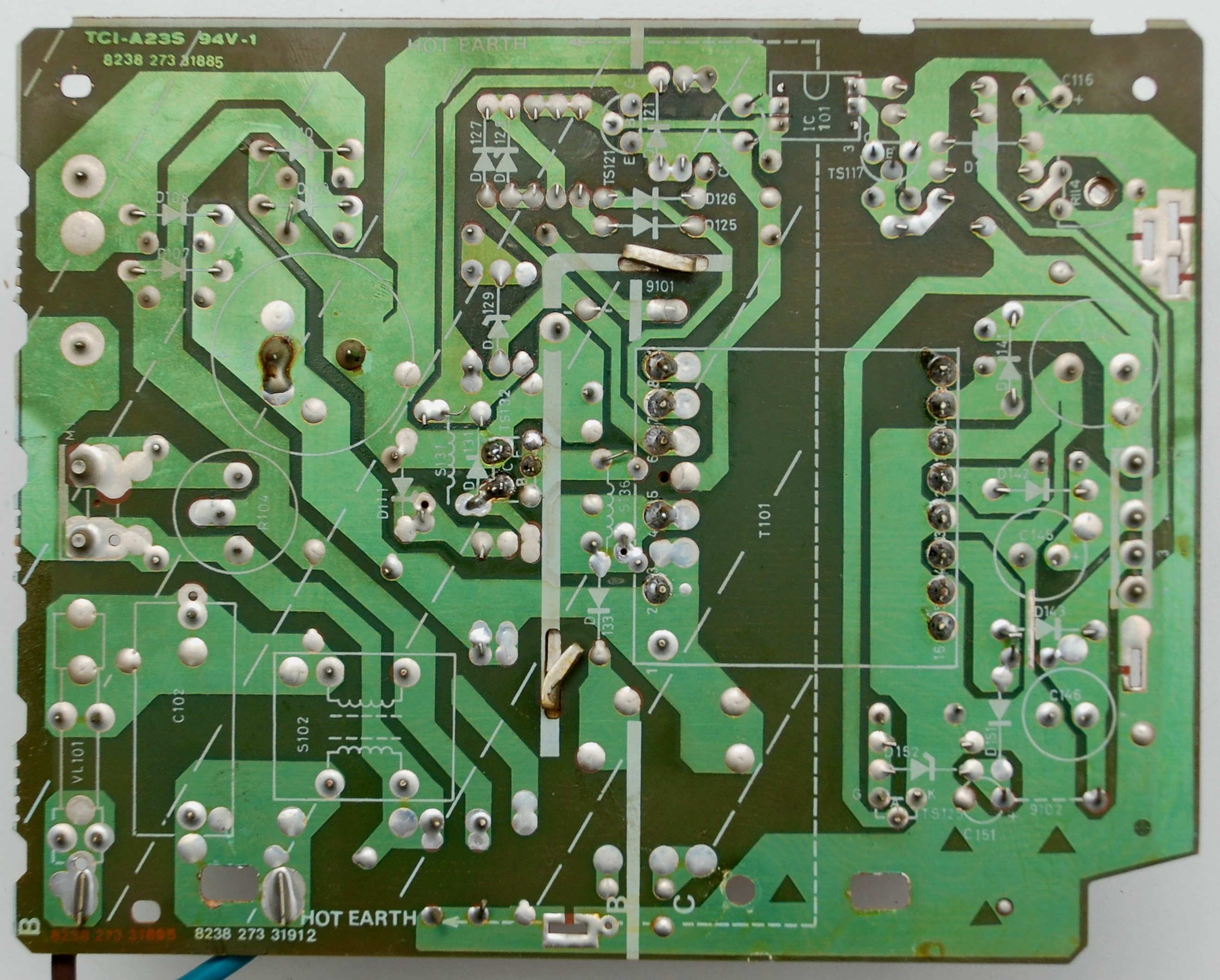

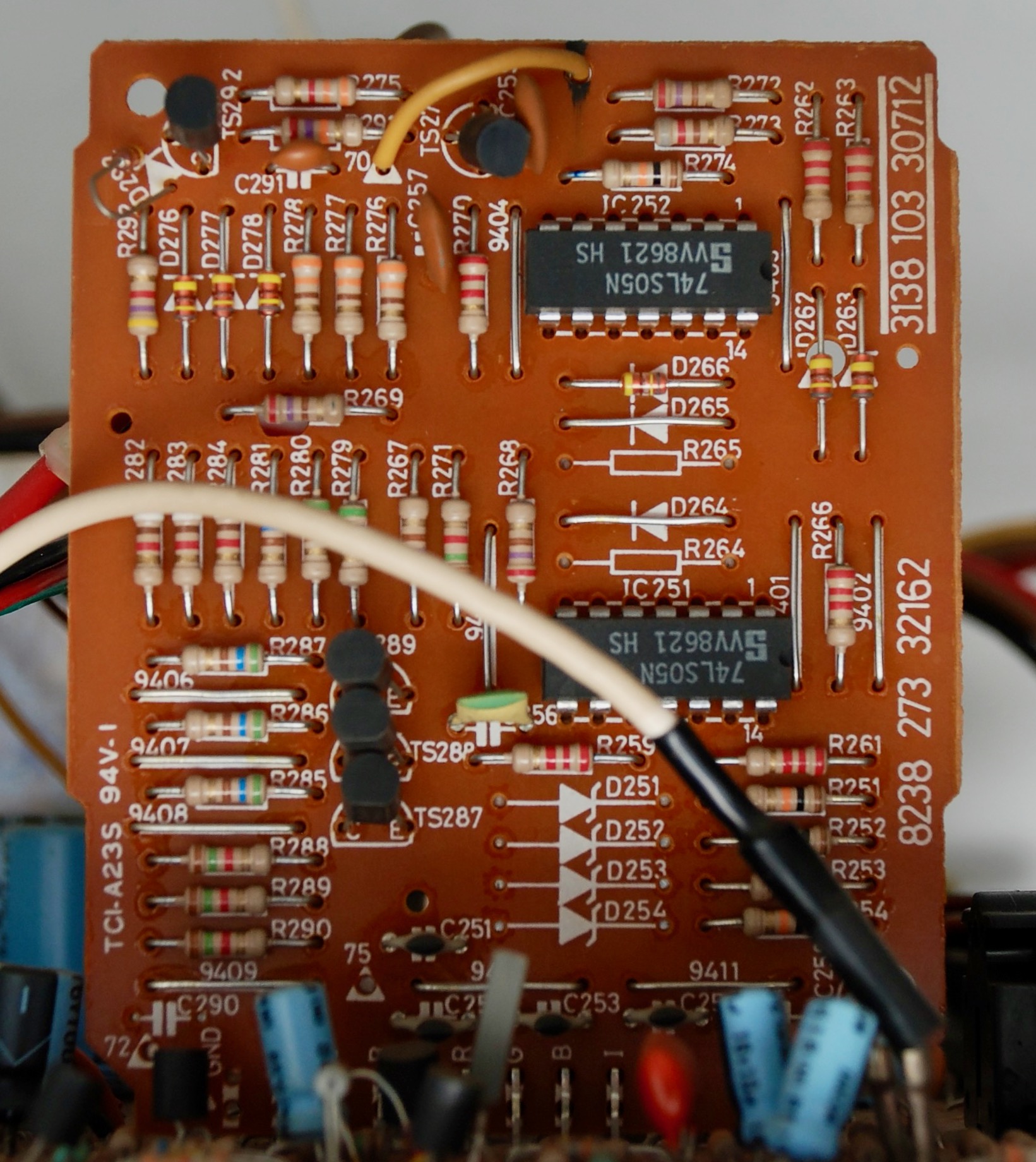

Yet, I’ve noticed a few variances between the capacitor list you provided and what’s on my board (3138 103 30852 86-33). The differences are as follows:
C496 and C497 are missing on my board.
C566, not included in your list, is a 63V 1.0uF capacitor.
C492 is listed as 16V 330uF on your site, but I found a 16V 100uF in its place on my board.
Additionally, C537 is labeled as C357 on the bottom of the board.
Regarding the bipolar capacitor C473, I’m unsure how to proceed. Is it possible to replace it with a Wima MKS 2 polyester capacitor of the same value? I have one, but it’s quite small compared to the original. Alternatively, I’m considering an MKP capacitor, which is larger and won’t fit easily, but maybe I can improvise something. Are there other suitable options? Your advice on this would be greatly appreciated. Thank you, Jasper.
Hello. Thanks for the info on the capacitors, I will check my list and fix mistakes. The bipolar capacitor should be capable of handling high frequency signals. It can’t be replaced by a regular small size electrolytic capacitors – they will explode – I found this out the hard way. After doing some research I found advices that it should be possible to use MKP capacitors. I replaced since a few and they worked fine. Indeed they are large in size and usually high voltage rated. I haven’t checked other types not really keen to experience more fireworks. MKP did the job for me.
Thank you for your swift reply. I’ve decided to go with an MKP capacitor; avoiding any risks like explosions is key, and I’m confident I can make it fit.
Regarding the component differences:
From your photo, it’s evident that C492 is larger than a 100uF 16V capacitor on your board, suggesting that your list is accurate for your specific model. However, my board definitely had a 100uF cap in that position. Curiously, a capacitor list for the 1084 monitor, which includes C566 (present on my board but missing from yours and your list), also states this cap as 100uF. Moreover, from your picture, it looks like C497 (below the 5 pots) is missing on your board, while C496 is there.
This points to there being minor variations in these monitors. Again, thank you for your guidance on the bipolar capacitor and for the valuable information on your website. Best regards, Jasper.
