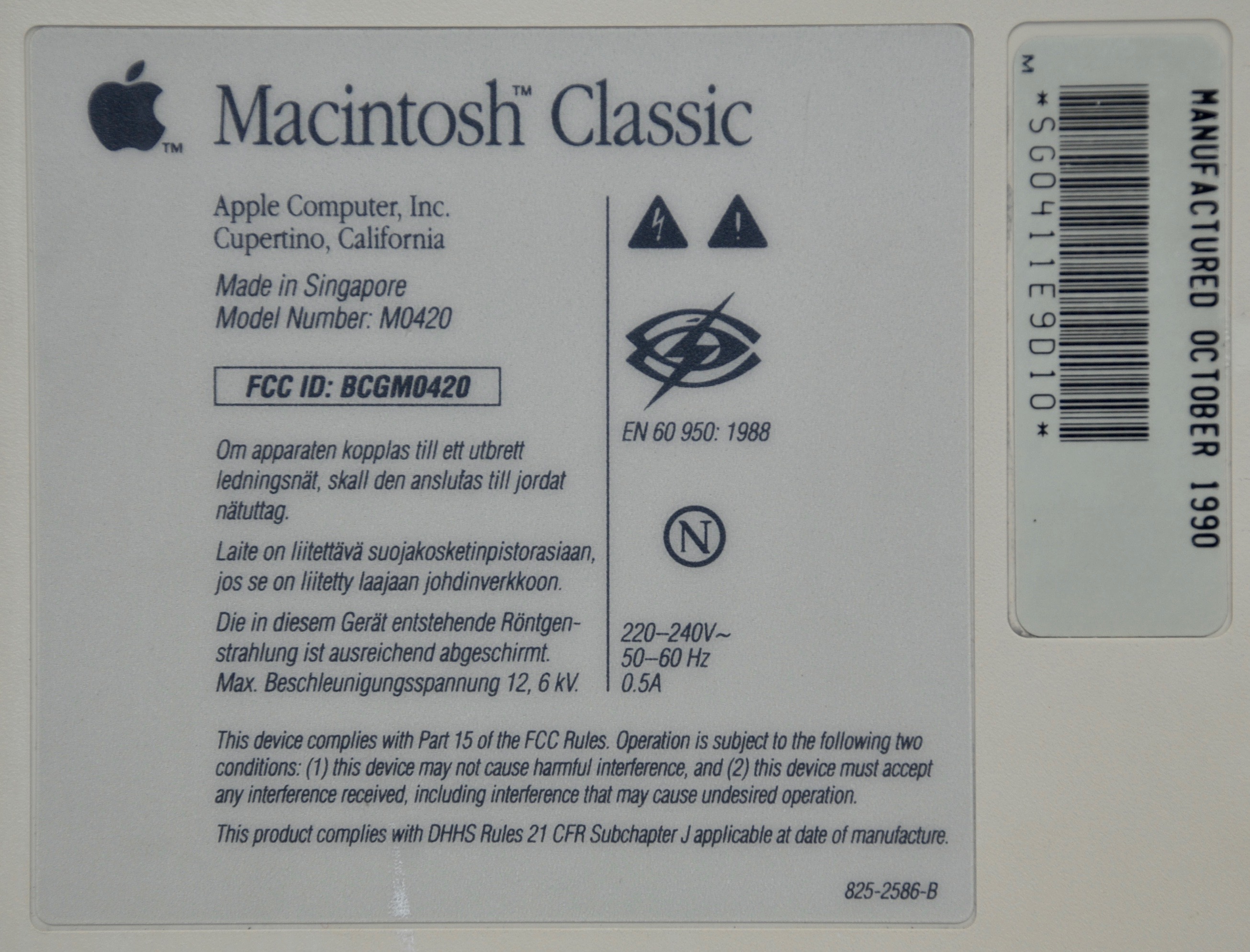

Apple Macintosh Classic

Resources

Wiki
lowendmac.com
everymac.com
Schematics

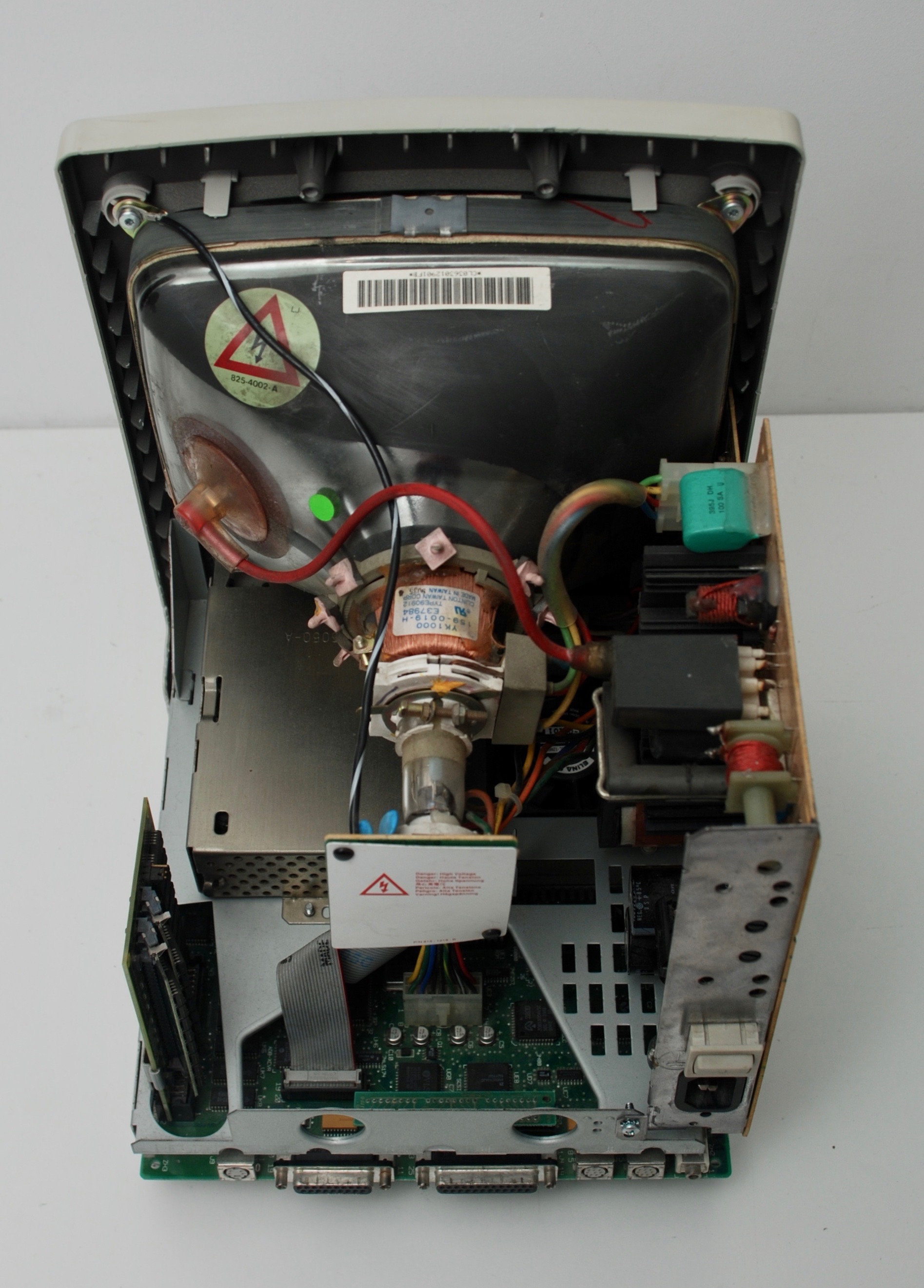

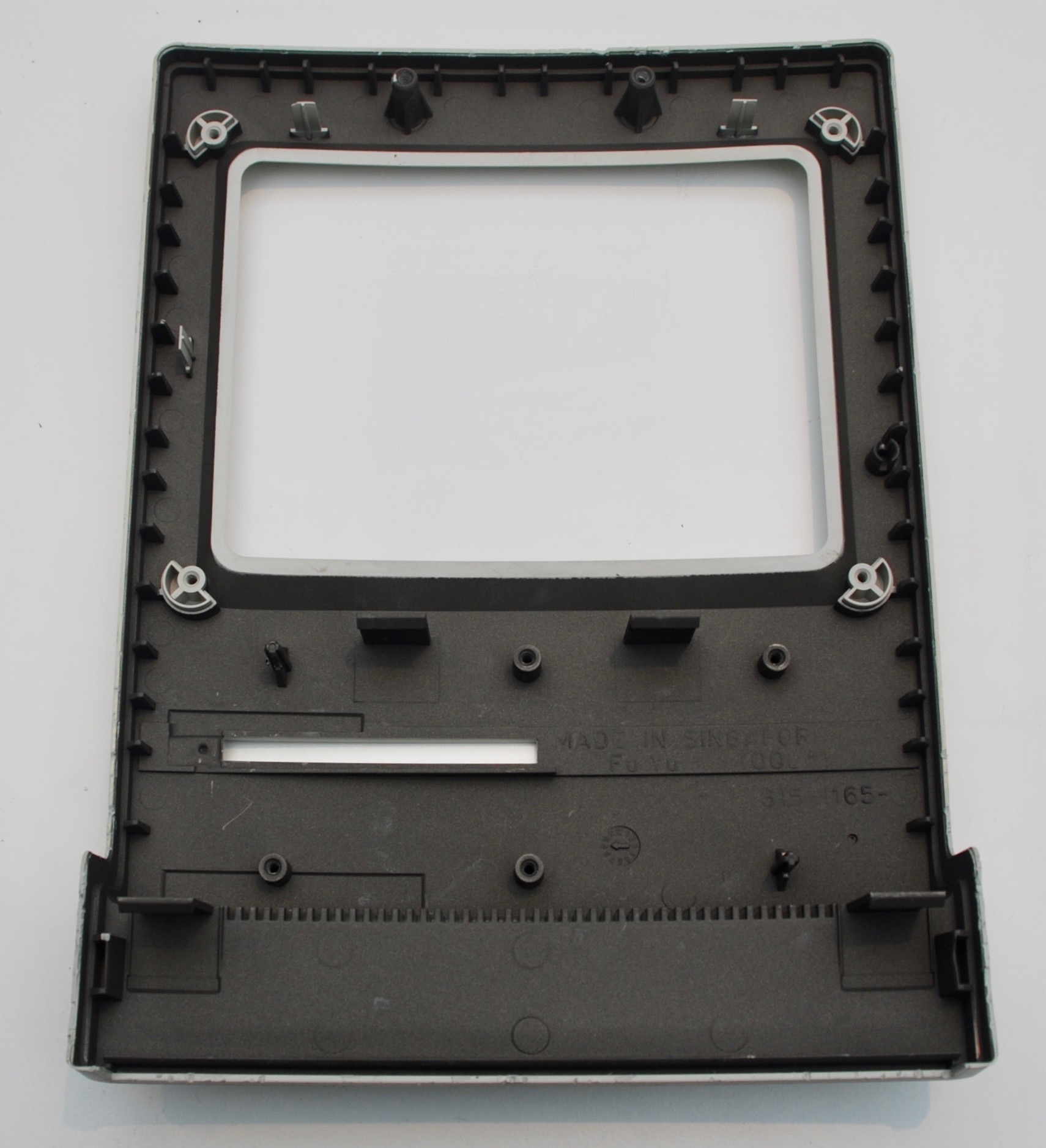

Internals

Motherboard

Macintosh Classic board is very prone to battery leak. Leaking battery can cause substantial damage to the metal chassis…

…and the PCB

Fortunately, the surroundings of the battery cradle are rather limited in PCB traces, so there is high probability fixing the board will be successful. First remove the components, which are in the battery fire range. These very likely includes UA2 RTC chip and the nearby sound chip.

Clean the PCB using a fine-grained sandpaper and cleanup IC pads from solder.

Clean even more all the surroundings of the damaged space, identify broken traces with a multimeter and fix them using a bodge wire. It can easily go through PCB vias.

Reinstall missing ICs and capacitors

Cover the polished parts of the PCB with a PCB varnish and install a separate battery cradle.

Memory Board

Kingston Module (KTA-1/Classic)

Apple Module (820-0405-01)

Unidentified Module (P/N 10105)

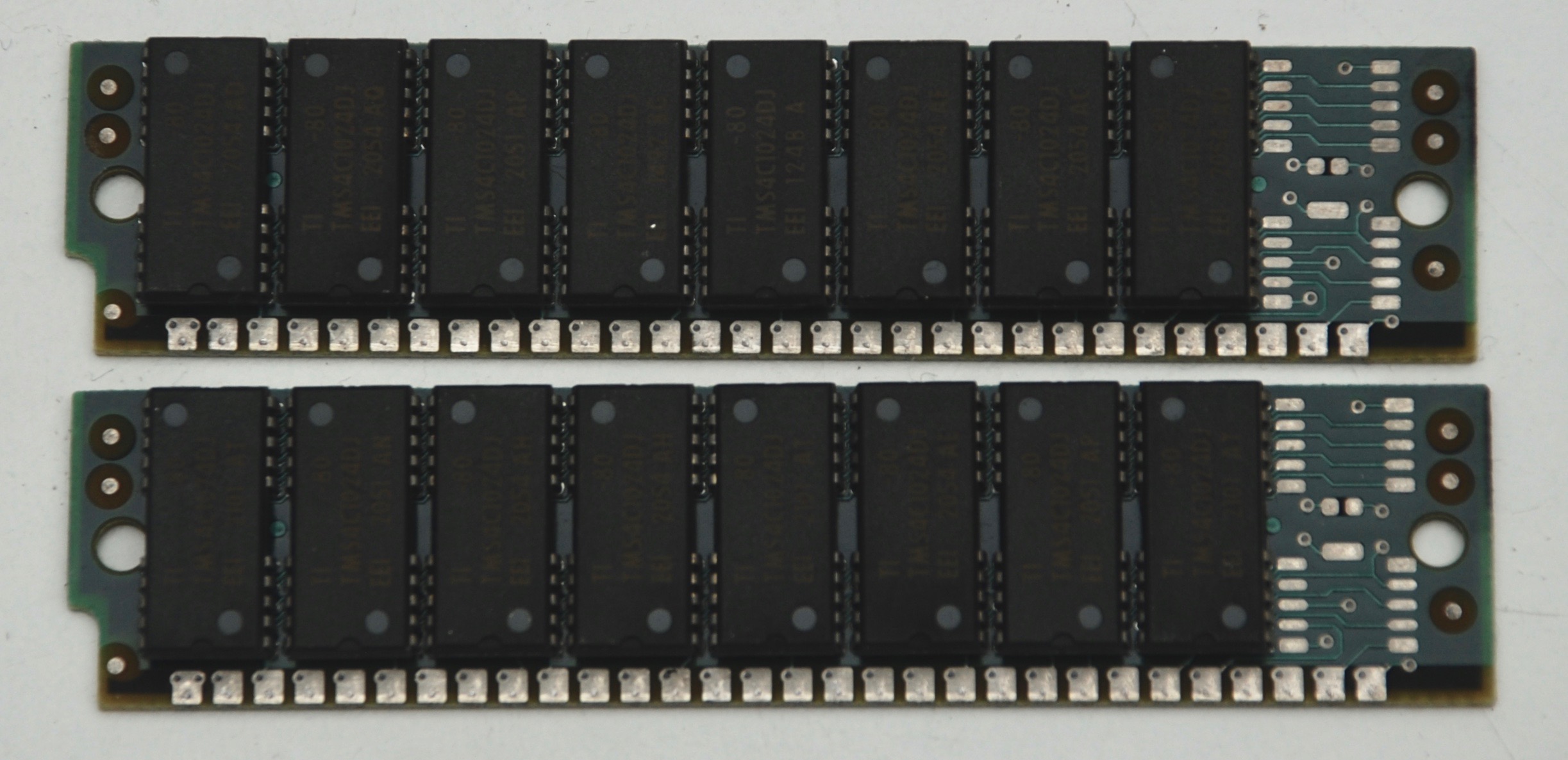

SIMM Modules

Macintosh Classic is the only Macintosh coming with OS in ROM – it can be booted by pressing CMD-OPT-X-O keys together and rebooting machine (try to do this in one person) – it is pretty cool!

Power Supply/Analog board

If your power supply gives no sign of life and the fuse is ok (meaning there is voltage on the primary winding of the transformer but not on the secondary), the first thing to replace is TDA4605-3 control IC. Prior to replacing this chip, it is a good idea to recap the analog board, as broken capacitors may be the reason for TDA4605 to burn. It is best to install a chip socket and have some spare chips handy, so in case they break again, it is easier to replace them.

Another common reason for PSU show no sign of life is a broken QP1 transoptor. The original part is CNY17-3 and can be replaced with LTV702 equivalent.

DSC_0068

If there is a short circuit in the PSU, which causes the fuse to blow on power on, it is most probably because of shorted QP2 IRF-BC40 switching transistor. You can detect it with multimeter doing a diode check between terminals of the transistor. A broken transistor will be likely conductive between any two pins and both directions. Removing the transistor should stop the fuse blowing (of course the PSU will not work yet).

Capacitors List

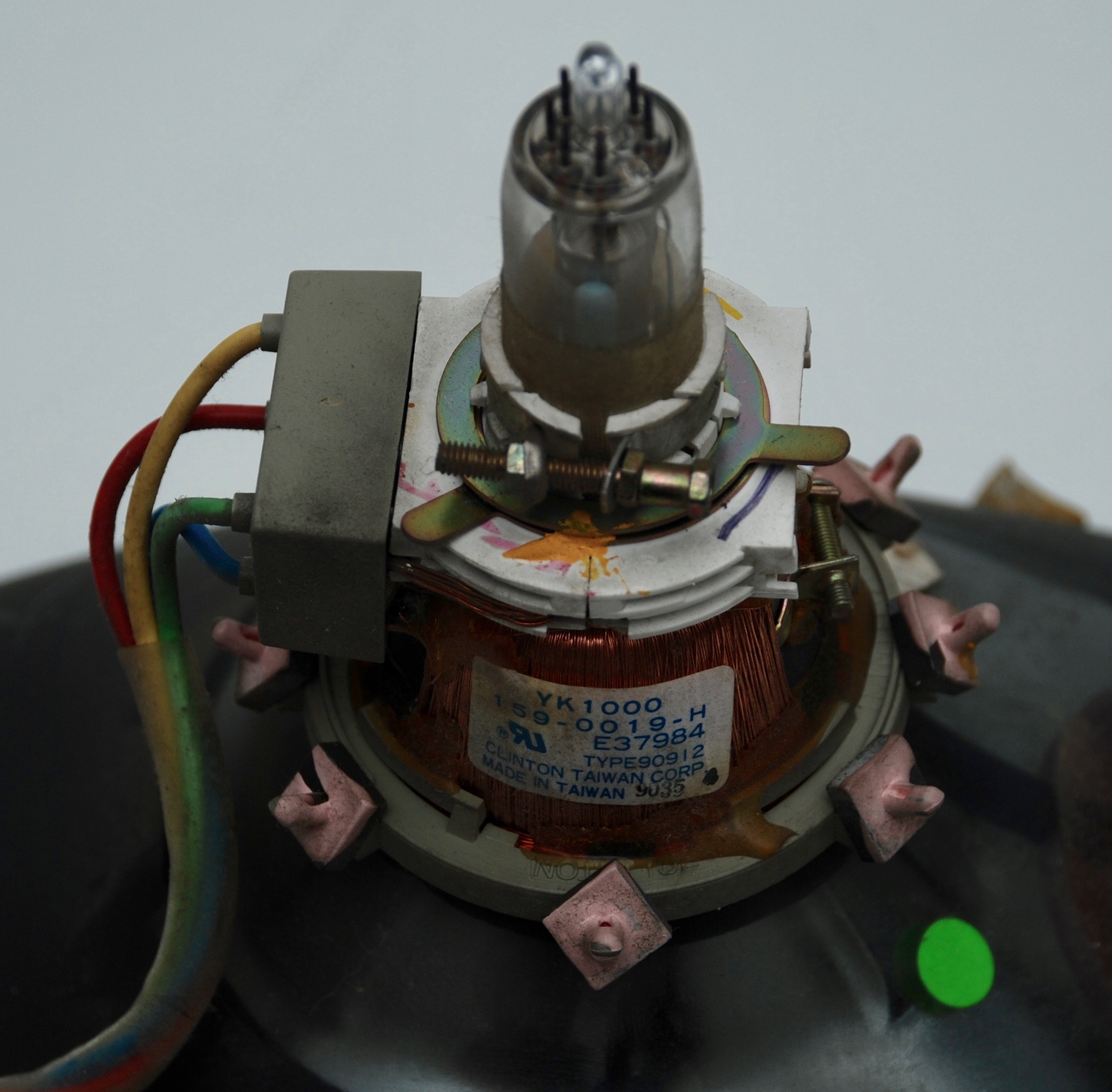

CRT

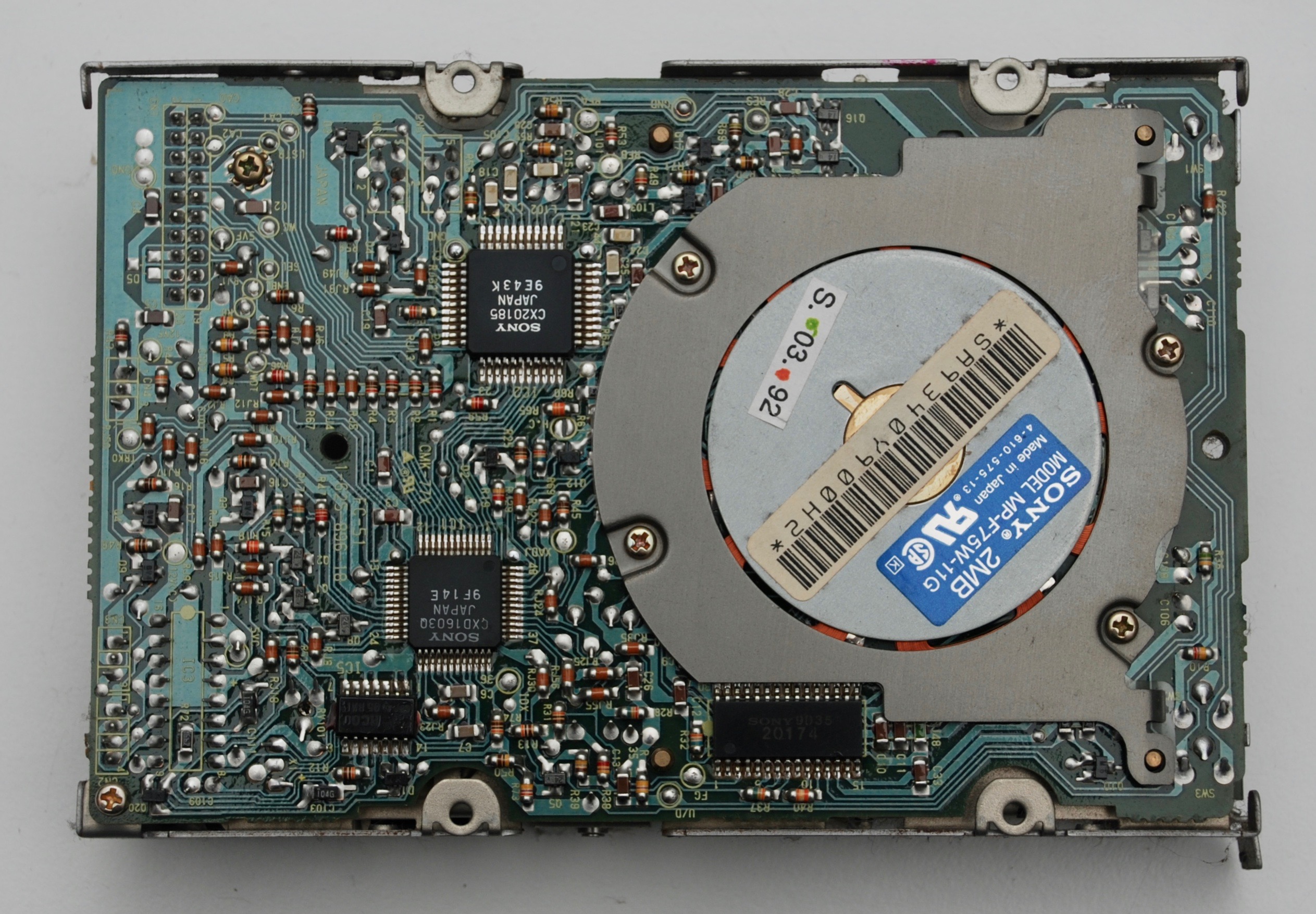

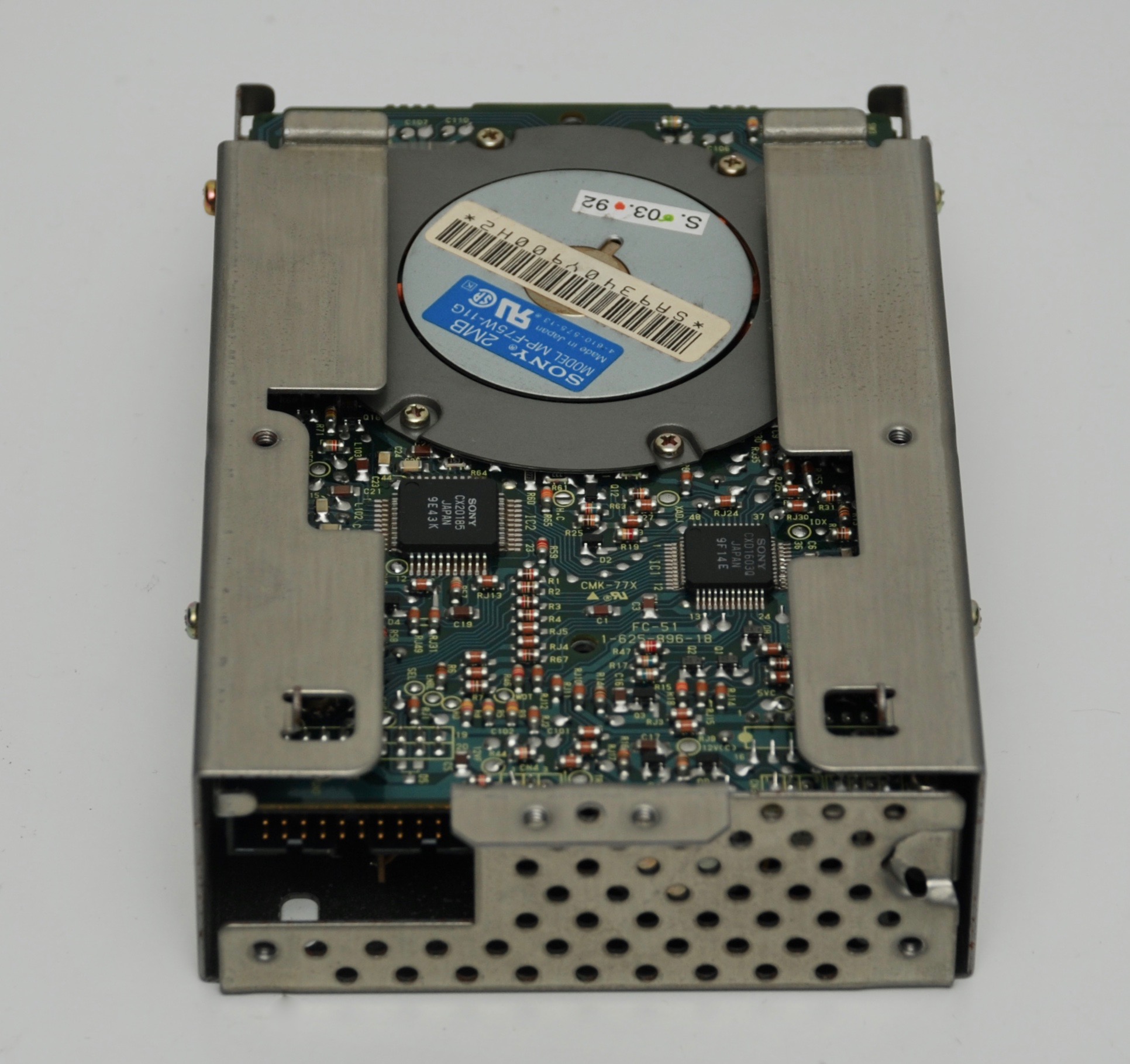

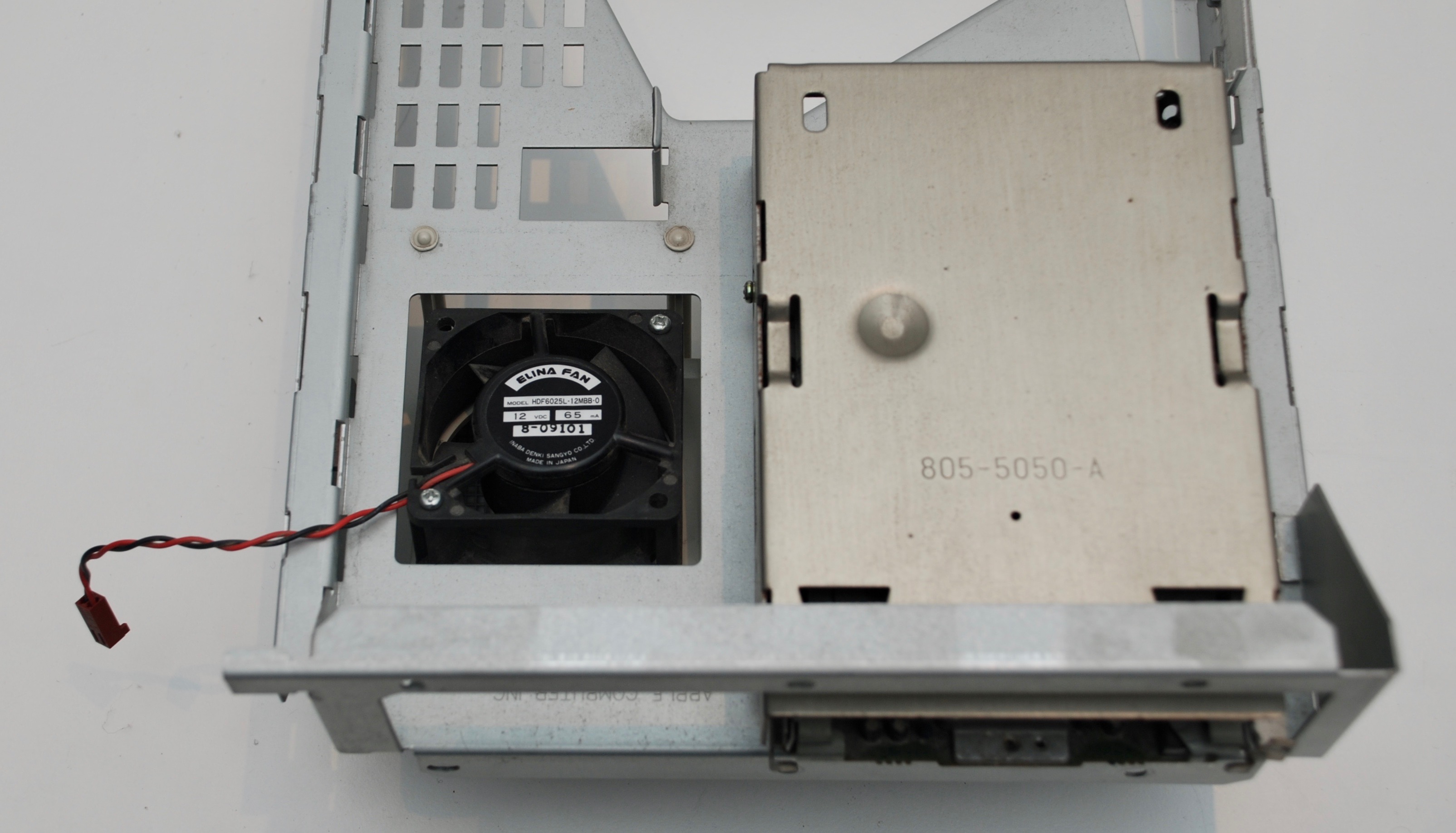

Floppy Disk Drive

Sony MP-F75W-11G

If the FDD is not reading the disks, inspect the distance between the upper head and the disk surface. If there is space, the heads have to be removed (together with the harness that is moved by the stepper motor) and it is possible to adjust the strength of a spring pulling the heads together from the bottom of the harness.

Hard Disk Drive

40MB Quantum ProDrive LPS

SCSI terminator (branded by Apple!)

Reassembly

Some Crap

A battery from 1991, that is not leaked at all! (although someone mounted it in a wrong direction)

DSC_0144

And the infamous Maxell battery bomb
