Apple Macintosh IIfx

Resources

Wiki
everymac.com
lowendmac.com
Schematics

Internals

Motherboard

IIfx motherboard uses two 3.6V batteries and the machine will not start without them – it turns the power supply on by providing a battery voltage on one of the power supply pins.

Memory

ROM

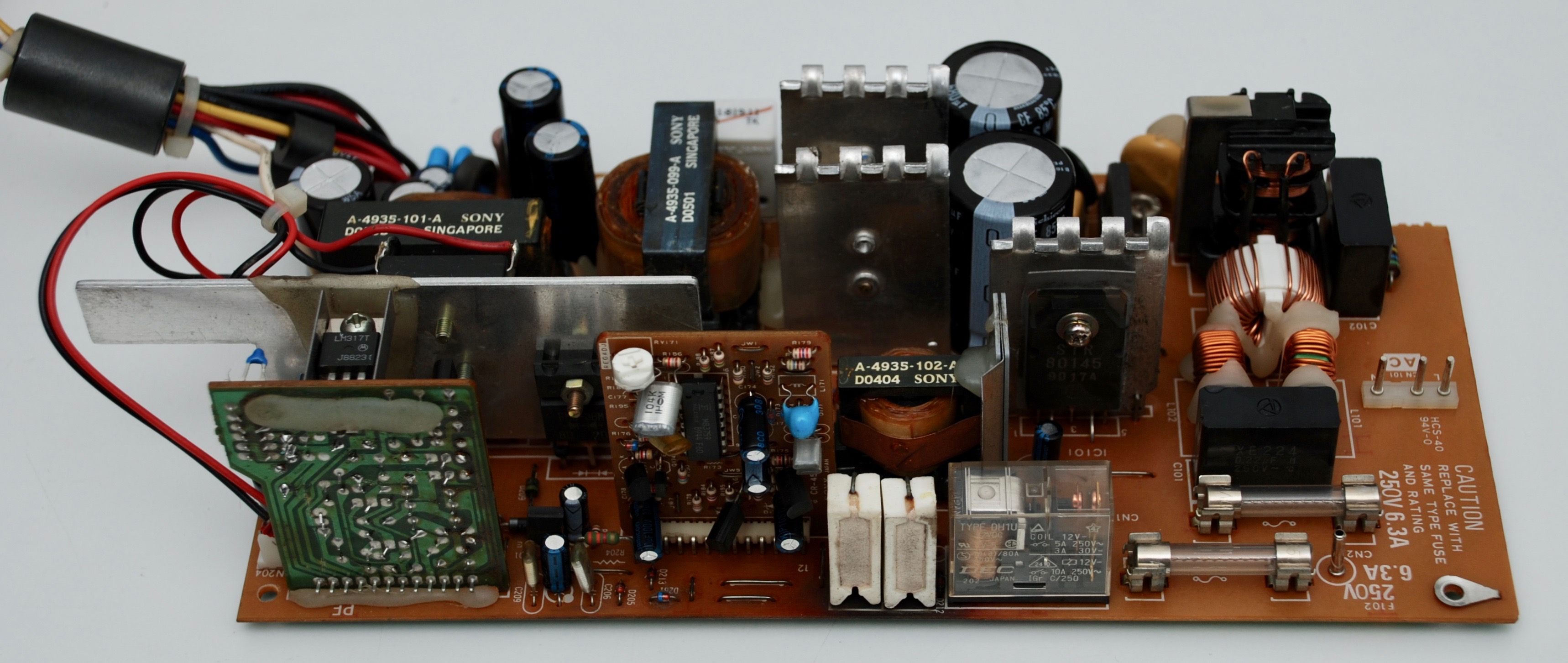

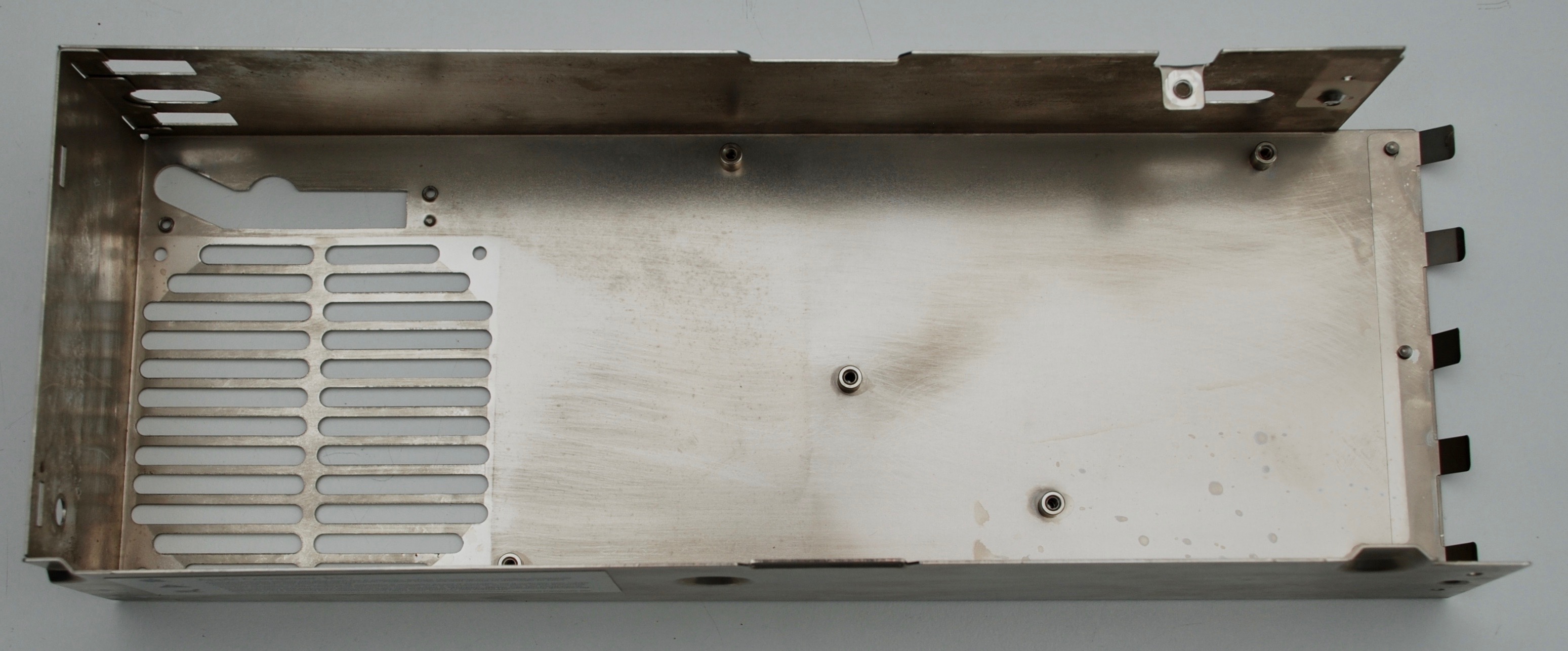

Power Supply

CR-45S

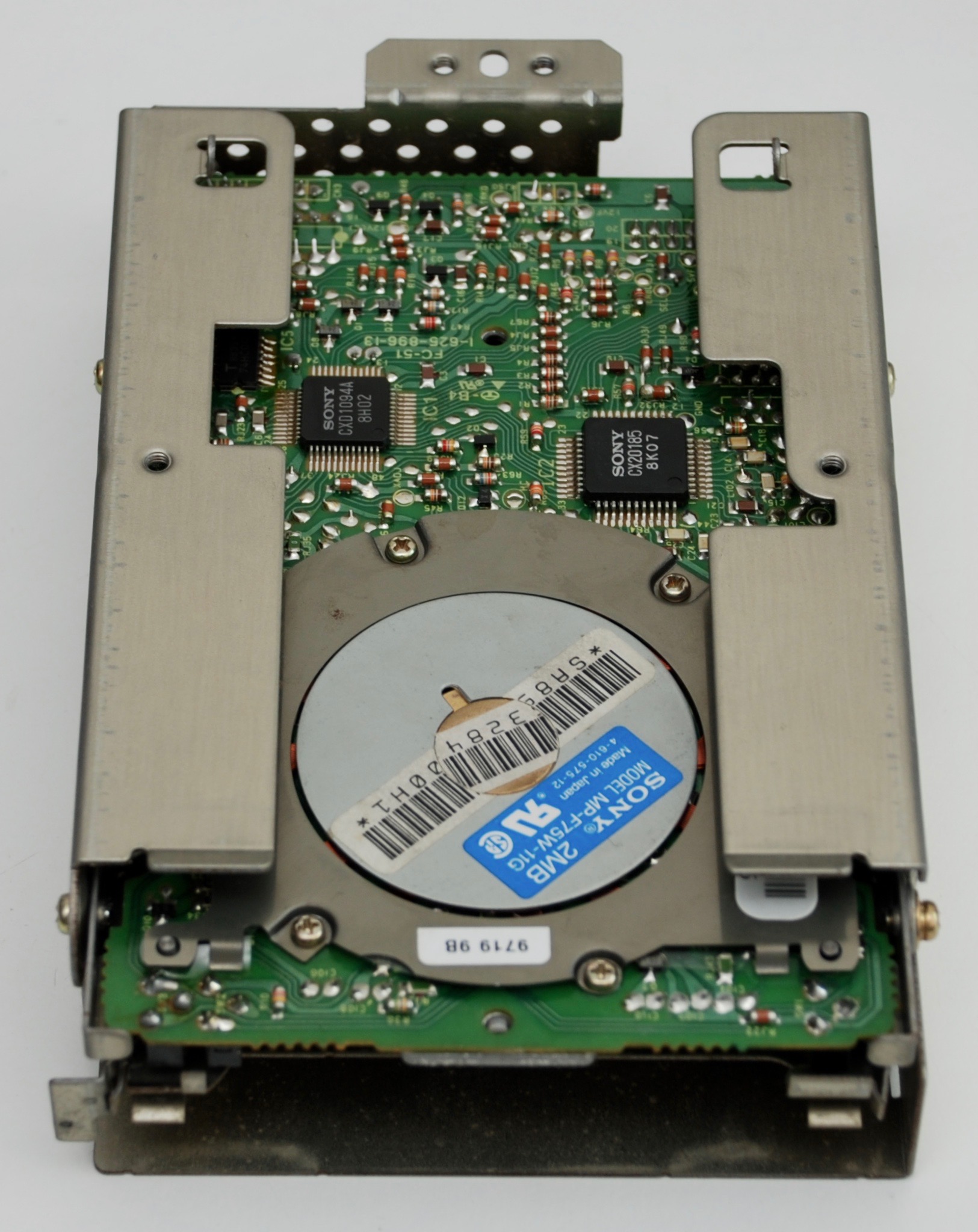

Floppy Disk Drive

1.4MB Sony MP-F75W-11G

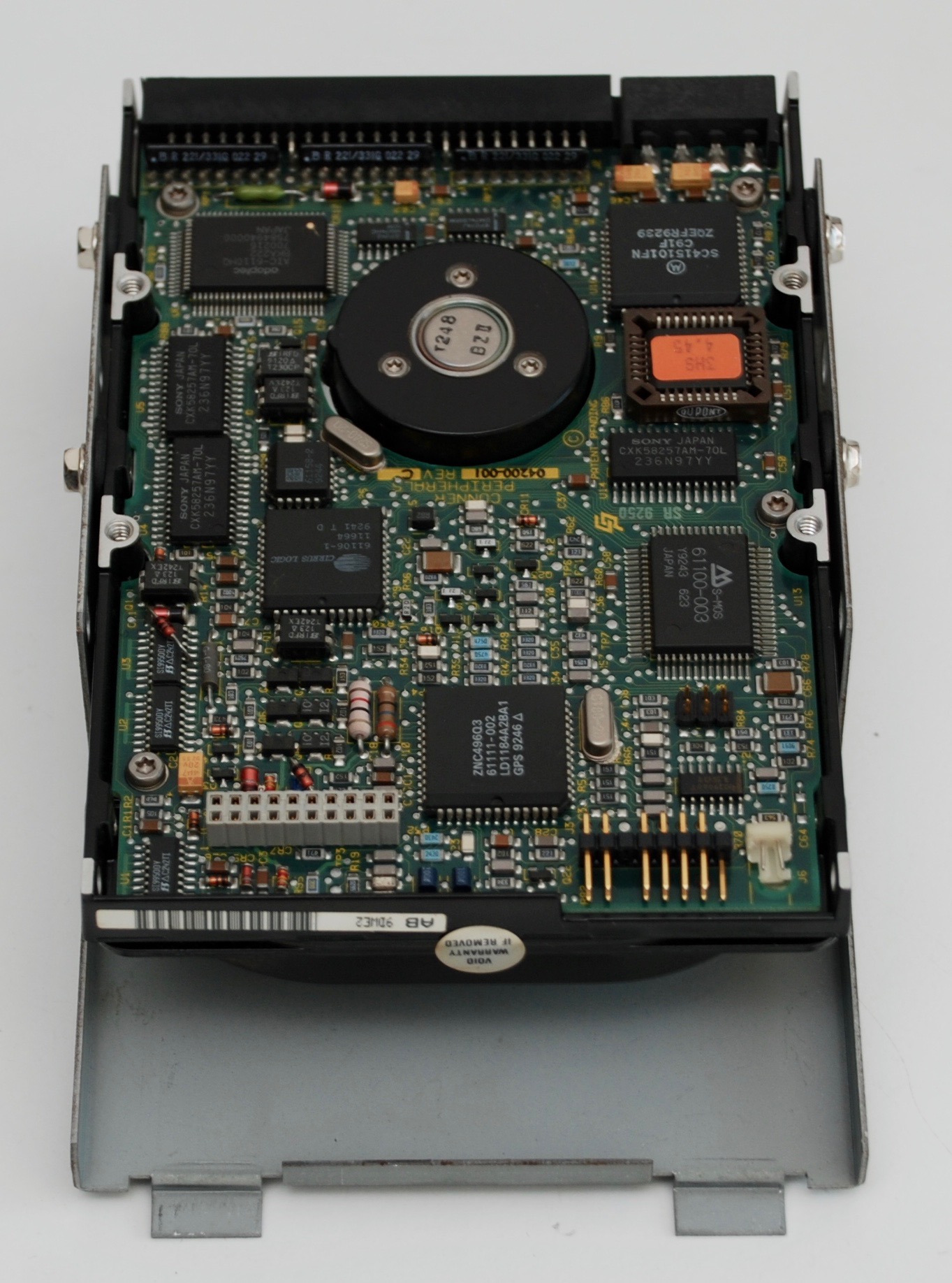

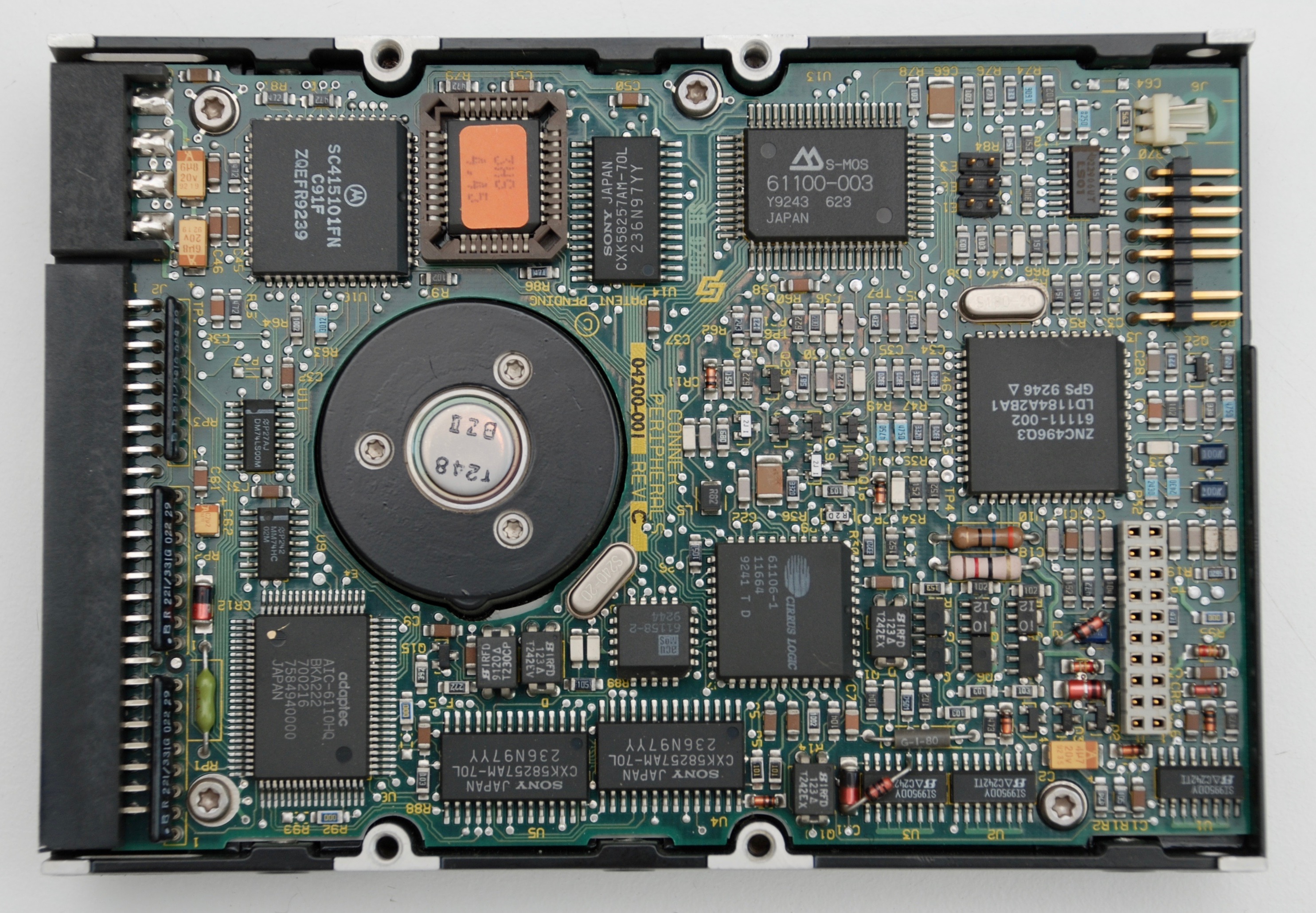

Hard Disk Drive

122MB Conner CP30100

Video Card

Formac ProNitron. The pictures on top of the page with the monitor are made with another graphics card. ProNitron produces too high resolution for the monitor I have. I also noticed some standard VGA monitors have also troubles with displaying the picture, but some don’t. This can be misleading as if the card was faulty, while it just needs a proper monitor.

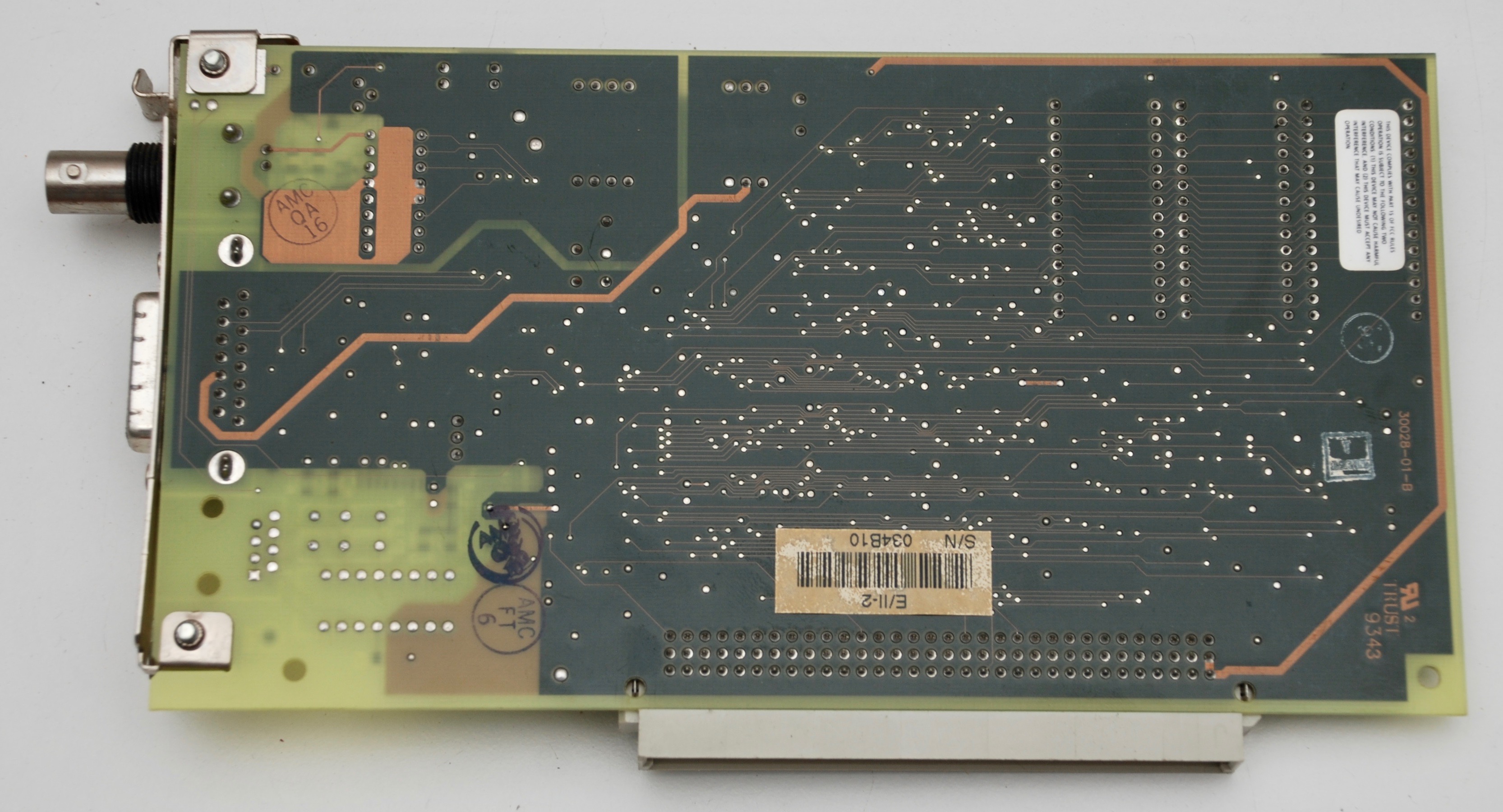

Network Card

DaynaPORT E/II-3

Video Capture Card

SuperMac Spigot NuBus

Capacitors List

Covers both the motherboard and power supply.

apple-iifx-capacitors



Reassembly

Some Dirt
